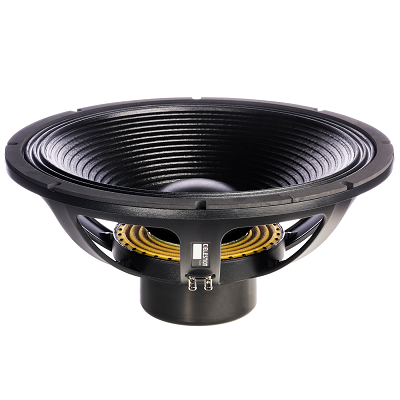

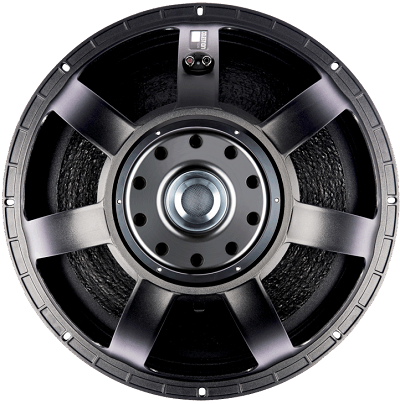

TSQ2460

.
24-inch cast aluminium chassis neodymium magnet low frequency loudspeaker


  • Advanced temperature control using 3-channel tuned venting system provides highly efficient cooling across the frequency band
  • Voice coil typically operates at up to 80°C lower temperature than other leading drivers in this class
  • Polysiloxane laminated double suspension provides much greater stability and improved cone displacement symmetry
  • Lead-out wires precision woven into suspension minimises excess motion and reduces fatigue
  • Double-sided, weatherproof cone coating enhances durability




Specification


Nominal diameter 610mm / 24in
Power rating 2500W
Continuous power rating 5000W
Rated impedance 4Ω
Sensitivity 98dB
Frequency range 20-200Hz
Chassis type Cast aluminium
Magnet type Neodymium
Voice coil diameter 152mm / 6in
Voice coil material Round copper
Former material Glass fibre
Cone material Glass loaded cellulose,
water-resistant
coating front & back
Surround material Triple roll, cloth sealed
Suspension Triple, polysiloxane-laminated
Gap height (Hg) 15mm / 0.59in
VC winding height (Hvc) 45mm / 1.77in
Additional impedances 8Ω

Parameters


Sd 2239cm2 / 347in2
Fs 27Hz
Mms 717.2g / 25.3oz
Qms 10.89
Qes 0.312
Qts 0.303
Re 3.17Ω
Vas 344.5l / 12.17ft3
BI 35.23Tm
Cms 0.048mm/N
Rms 11.089kg/s
Le (at 1kHz) 2.05mH
Xmax 18.75mm / 0.73in
Xmech 74mm / 2.91in
Efficiency η0 2%

Mounting Information


Overall diameter 627mm / 24.7in
Overall depth 280mm / 11in
Cut-out diameter 571mm / 22.5in
Mounting hole dimensions 8.5x9mm
0.33x0.35in
Number of mounting holes 8
Mounting hole PCD 596.3-606mm
23.47-23.86in
Flange & gasket thickness 21mm / 0.83in
Unit weight 22kg / 48lb

Packed Dimensions & Weight


Single pack size W x D x H 745mm x 745mm x 415mm
29.3in x 29.3in x 16.3in
Single pack weight 27kg / 59.5lb
Cut-out diameter 571mm / 22.5in
Mounting hole dimensions 8.5x9mm / 0.33x0.35in
Number of mounting holes 8
Mounting hole PCD 596.3-606mm
23.47-23.86in
Flange & gasket thickness 21mm / 0.83in
Unit weight 22kg / 48lb
